Section 47.8: PX4 To Hardware: SITL, HITL, Logs, And Flight-Test Evidence

"A drone is not airworthy because it flew once; it is airworthy because the same fault was interrogated in SITL, in HITL, and in the logs."

A Systems-Minded Embodied AI Agent

Deployment Is A Sequence Of Claims

A PX4-based drone stack usually makes at least six distinct claims. First, the mission logic produces commands in the right frame and units. Second, the estimator keeps a believable state in the intended operating domain. Third, the low-level controller can track the commanded motion without persistent saturation. Fourth, the communication path between companion computer and flight controller meets the timing budget. Fifth, the safety monitor triggers the intended fallback. Sixth, the logs and replay tools are rich enough to explain a failure after the fact.

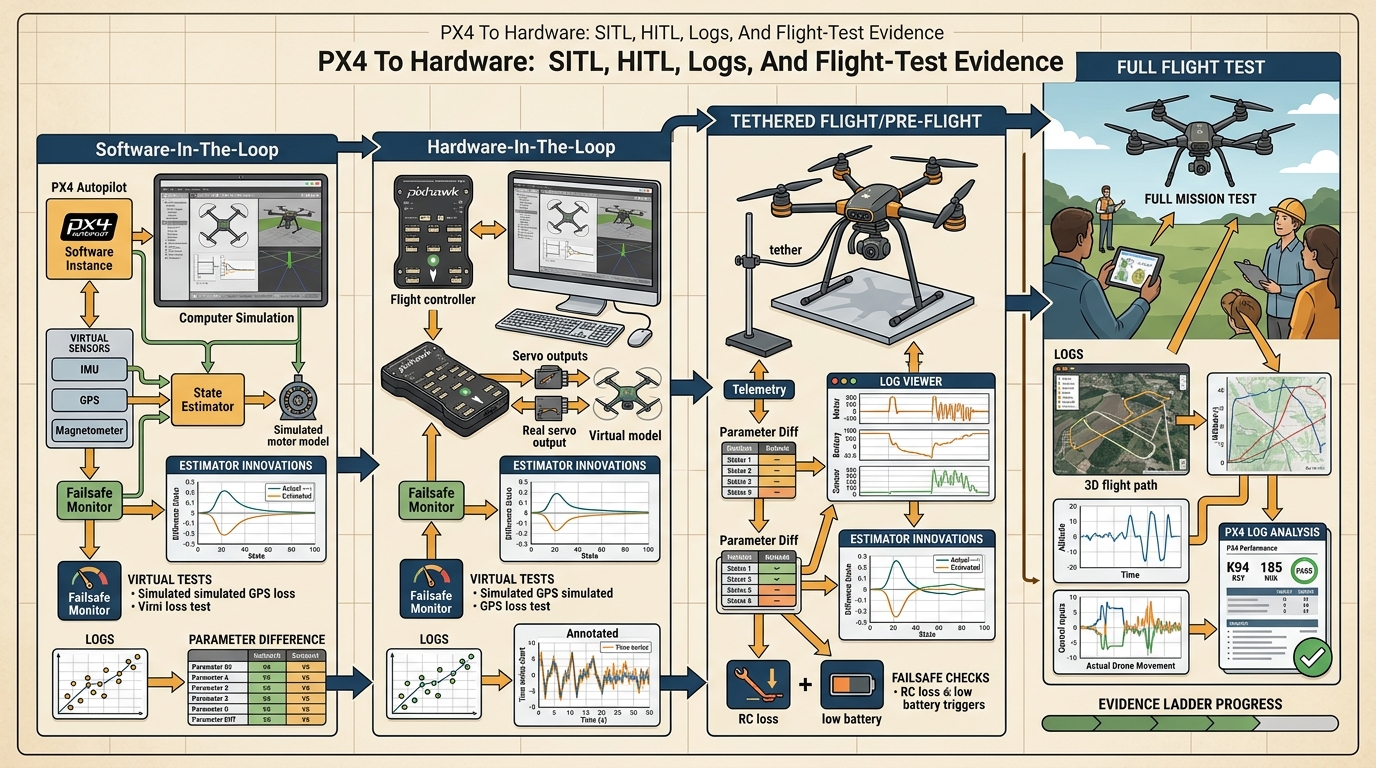

Those claims should be promoted stage by stage. SITL is where you catch frame mistakes, route logic bugs, and bad assumptions about the controller interface. HITL is where timing, estimator plumbing, and real flight-controller behavior become visible. Tethered or guarded hover tests are where vibration, battery sag, magnetic disturbance, prop wash, and sensor placement begin to rewrite the story.

Flight-Readiness Mathematics

The most useful equations in deployment work are not fancy control laws. They are the diagnostics that tell you whether the stack still deserves trust. Two examples appear in almost every PX4 debugging session:

$$r_k = z_k - h(\hat x_k^-), \qquad a_y = v^2 \kappa.$$

The innovation residual $r_k$ says whether the estimator's belief and the incoming sensor measurement still agree. The lateral acceleration relation $a_y = v^2 \kappa$ says whether a planned turn is physically credible for the airframe and speed envelope. When a VIO-assisted mission drifts, or a trajectory asks for more curvature than the aircraft can safely track, these simple quantities fail before the mission-level score fails.

A practical flight-readiness gate can therefore be written as a vector of measurable conditions:

$$g = [e_{\mathrm{track}}, r_{\mathrm{ekf}}, s_{\mathrm{act}}, \ell_{\mathrm{latency}}, f_{\mathrm{failsafe}}].$$

The gate passes only if tracking error stays bounded, estimator residuals stay healthy, actuator saturation stays rare, link latency remains inside the offboard budget, and failsafes either do not trigger or trigger exactly as designed during test scenarios.

Practical Stack And What Each Tool Proves

The practical tool stack for this section is: PX4, QGroundControl, MAVLink, MAVSDK, ROS 2 uXRCE-DDS, Flight Review or Data Comets, Gazebo. The point is not to name a fashionable stack. The point is to assign each tool a job in the evidence ladder: PX4 exposes controller modes and failsafes, QGroundControl exposes parameters and health checks, MAVLink and MAVSDK expose command and telemetry contracts, ROS 2 exposes companion-computer timing, and the log-analysis tools expose what the vehicle actually believed and did.

Code And Evidence

The implementation below illustrates how to store one promotion decision as a compact artifact. Code Fragment 1 is intentionally small so that the structure, not the syntax, stays memorable.

# Build one promotion record for a PX4 hardware-readiness gate.
# The same schema should survive SITL, HITL, and guarded-flight stages.
from dataclasses import dataclass, asdict

@dataclass
class FlightGate:
    stage: str
    mean_tracking_error_m: float
    innovation_ratio: float
    command_latency_ms: int
    actuator_saturation_pct: float
    failsafe: str
    decision: str

    def as_row(self) -> dict[str, object]:
        return asdict(self)

gate = FlightGate(
    stage="guarded_hover",
    mean_tracking_error_m=0.18,
    innovation_ratio=0.74,
    command_latency_ms=32,
    actuator_saturation_pct=7.5,
    failsafe="not_triggered",
    decision="promote_to_low_speed_route_test",
)
print(gate.as_row())

Expected output: the printed dictionary should make it possible to explain the promotion decision without opening another notebook or guessing which stage produced the numbers. If the record lacks stage name, estimator health, latency, or the explicit decision, it is too weak to support real hardware progression.

Recipe For Builders

1. Freeze the mission manifest before hardware testing: airframe, payload, sensor suite, command interface, reserve battery, geofence, and abort conditions.
2. Run SITL with the same route and metric script that you will use later on real hardware.
3. Move to HITL only after command frames, mode transitions, and estimator sources are all explicit and reproducible.
4. Use guarded hover and low-speed envelope expansion to test vibration, innovation residuals, saturation, and failsafes under controlled disturbances.
5. Turn every anomaly into a replay case, then decide promotion or rollback from the evidence artifact rather than from team confidence.
