Section 48.8: Route, behavior, and scenario-based planning

Driving is a stack of commitments at different time scales: which roads to take over minutes, which gap to take over seconds, and which steering angle to take right now.

On layered planning and the HD map

Route, Behavior, And Local Planning

Route planning chooses a coarse path through a road graph. Behavior planning chooses maneuvers such as follow, yield, merge, stop, nudge, overtake, or pull over. Local planning turns that decision into a dynamically feasible trajectory with speed, curvature, comfort, and collision constraints.

HD Maps And Localization

Route and behavior planning both stand on a high-definition map. Unlike a navigation map, an HD map encodes lane geometry, traffic signs, crosswalks, and stop lines to roughly 10 cm precision, organized as layers: lane centerlines and boundaries, regulatory elements (signs, signals, speed limits), and topology (which lane connects to which). The vehicle locates itself in this map by scan matching, aligning live LiDAR or camera features against the stored map, which yields a lane-relative pose far more precise than raw GNSS. Crowdsourced map updates, where the fleet reports discrepancies, keep the map fresh.

The most basic map query a planner makes is "which lane am I in, and where is its center?" The example below performs a nearest-centerline lookup: given the ego position, it returns the closest lane-centerline point, the seed of lane-relative localization and of the Frenet reference path from Section 48.4.

import numpy as np

# A tiny HD-map fragment: two lane centerlines as polylines of (x, y) points.
lanes = {
    "lane_L": np.array([[0, 1.8], [10, 1.8], [20, 1.9], [30, 2.2]], dtype=float),
    "lane_R": np.array([[0, -1.8], [10, -1.8], [20, -1.7], [30, -1.4]], dtype=float),
}

def nearest_centerline(ego_xy, lanes):
    """Return (lane_id, nearest centerline point, lateral distance) for the ego."""
    best = (None, None, np.inf)
    p = np.asarray(ego_xy, dtype=float)
    for lane_id, pts in lanes.items():
        d2 = np.sum((pts - p) ** 2, axis=1)   # squared distance to each map point
        i = int(np.argmin(d2))
        dist = float(np.sqrt(d2[i]))
        if dist < best[2]:
            best = (lane_id, pts[i], dist)
    return best

ego = (12.0, -1.2)                            # ego pose near the right lane
lane_id, cpt, lateral = nearest_centerline(ego, lanes)
print(f"ego in {lane_id}: nearest center {tuple(cpt)}, lateral offset {lateral:.2f} m")

Expected output: the ego at (12.0, -1.2) is assigned to lane_R with a nearest centerline vertex at (10.0, -1.8) and a distance of about 2.09 m (dominated by the 10 m vertex spacing of this coarse polyline; a real HD map is sampled far more densely). The lane assignment is the lane-relative localization a behavior planner needs before it can reason about gaps and maneuvers, and in a real stack the snap is refined by scan matching against the full HD map layers.

Scenario-Based Validation

Scenario testing is the bridge from impressive driving clips to engineering evidence. A scenario names the road layout, actors, initial states, behavior scripts, weather, sensor configuration, success criteria, and termination rules. OpenSCENARIO, ScenarioRunner, CommonRoad, and CARLA-style tooling make those assumptions explicit.

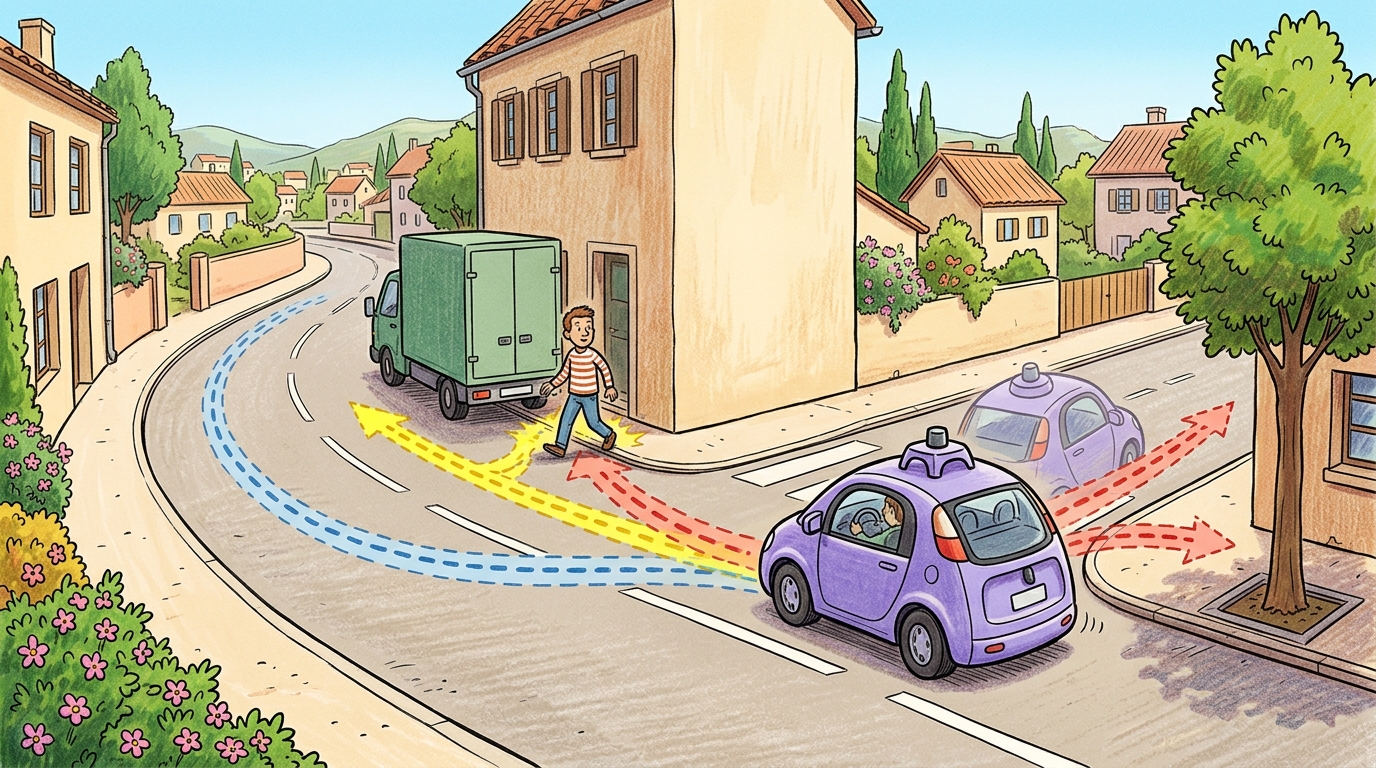

A useful scenario program separates functional scenarios, logical scenarios, and concrete scenarios. The functional scenario says "occluded pedestrian after parked van." The logical scenario defines parameter ranges for speed, distance, visibility, and pedestrian timing. The concrete scenario fixes one reproducible test instance with exact values.

Safety Case Thinking

A safety case connects hazards, mitigations, tests, and residual risk. For driving, this means the evidence should be organized by operational design domain: road type, weather, speed range, traffic density, lighting, map quality, sensor availability, and fallback behavior.

SOTIF-style reasoning asks whether the intended function can be unsafe even without a component failure. That question is central for learned perception and planning: the camera may work, the model may run, and the vehicle may still choose an unsafe maneuver because the scenario sits outside the validated operational design domain.

Expected output: the scenario name should identify a recognizable hazard pattern and the metric count should confirm that the planner will be judged on more than route completion alone. If your scenario card cannot name its fallback behavior or its ODD, it is not strong enough to support a safety claim.
