Section 33.4: VoxPoser: composing 3D value maps

A Careful Control Loop

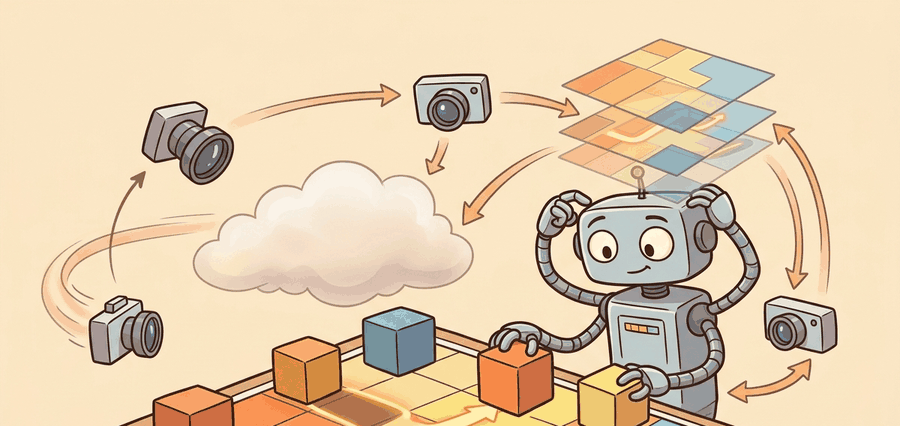

Read the figure as a value-map composition pipeline. VoxPoser-style systems must turn language into spatial objectives, collision costs, affordance maps, and controller targets in a shared 3D frame.

This section shows how an LLM can stay useful in manipulation once its outputs become spatial maps instead of free text or brittle symbolic steps.

The practical question is how language should shape a 3D objective without bypassing geometric planning and collision reasoning.

Theory

VoxPoser represents language-conditioned objectives as voxelized value and constraint maps. A planner then searches for a trajectory $\tau$ that maximizes integrated value while respecting constraints, for example $$\tau^* = \arg\max_\tau \sum_{t=0}^{T} V_x(p_t) - \lambda C_x(p_t),$$ where $p_t$ are end-effector poses, $V_x$ is a language-conditioned affordance map, and $C_x$ is a constraint or collision cost map.

This matters because free-text plans like 'move above the mug, then approach from the side' are hard to execute directly. A value map expresses the same semantics in the planner's native language: spatial preference over poses. The optimizer can then handle smoothness, collision, and dynamics with standard tools.

Worked Example

Code Fragment 1 builds a one-dimensional toy value map and shows how the best pose changes when language and constraints are composed. The toy numbers are not the point; the compositional interface is.

# Compose a small value map with a constraint penalty.
# The optimizer should favor high-value cells that remain physically safe.
# This is the essence of the VoxPoser interface in miniature.
value = [0.1, 0.4, 0.9, 0.6, 0.2]
constraint = [0.0, 0.0, 0.7, 0.1, 0.0]

score = [round(v - c, 2) for v, c in zip(value, constraint)]
best_cell = max(range(len(score)), key=lambda i: score[i])

print(score)
print(best_cell)

The expected output is a composed spatial score map followed by the selected target cell. The important interpretation is that cell `3` wins only after semantic preference and feasibility penalties are combined, so a reader can see that language grounding alone does not determine the physical target.

Practical Recipe

1. Build a scene representation that supports language-conditioned voxel or point-based scoring.
2. Separate attractive maps from forbidden or high-cost maps instead of mixing them too early.
3. Compose maps before optimization so the planner sees one coherent objective.
4. Hand the result to a classical motion planner or MPC stack rather than bypassing geometry checks.
5. Visualize the maps during debugging, because silent spatial mistakes are easy to miss in text logs alone.

VoxPoser is a good example of respecting abstraction boundaries. The LLM handles semantic decomposition and map composition. The planner handles feasibility, smoothness, and collision. Each module speaks in the representation where it is strongest.

This also suggests a clean evaluation strategy: compare map quality separately from planner quality, then compare the full stack. If the planner is fixed and performance changes, the value probably comes from better spatial grounding rather than from hidden execution tweaks.

Code Fragment 2 stores the language-conditioned spatial objective as an audit record. That record is the right place to compare map composition strategies, because it preserves the chosen target cell and the planner-facing score.

1. Save the positive and negative map summaries alongside the chosen pose or trajectory.
2. Record the scene frame and resolution so map quality is reproducible.
3. Visualize planner decisions against the underlying map before touching hardware.
4. Benchmark with the same motion planner when comparing mapping strategies.
5. Log whether execution failed because the map was wrong or because the optimizer could not realize a good map.

The expected output is a planning record where a grounded instruction becomes a planner-facing spatial target plus the local score that justified it. If `target_cell` changed after a perception update while `planner` stayed fixed, the scientific conclusion would be better scene grounding rather than a better optimizer.

If VoxPoser-style systems fail, separate scene-model failures, map-composition failures, and optimizer failures. These layers interact, but they should still be debugged as distinct interfaces.
